Product Description:
Specifications: |
Meets IEC 61156, ISO/IEC 11801 and TIA/EIA-568B requirements |
Description: |

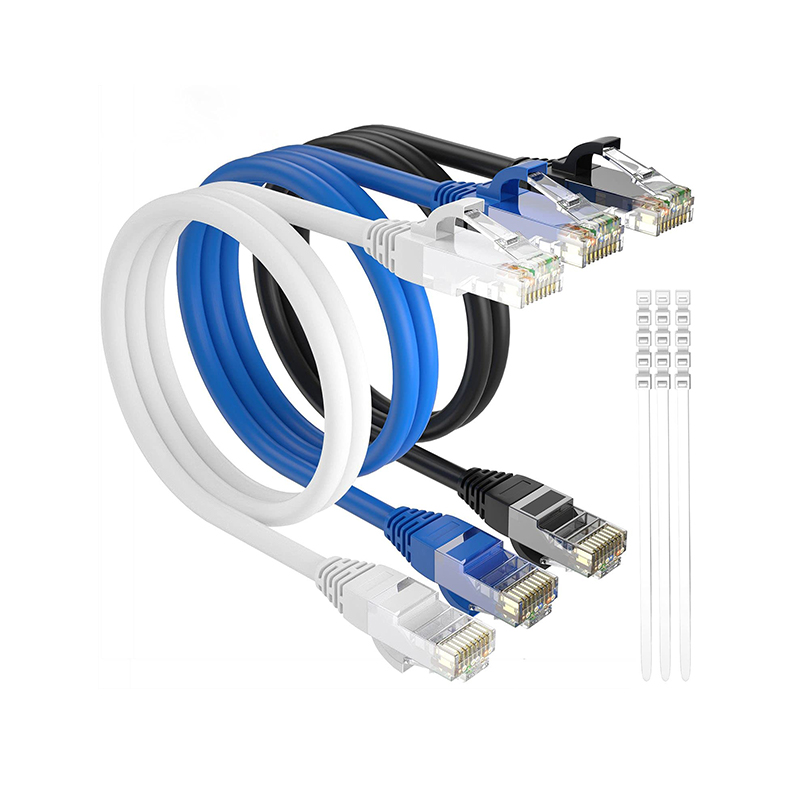

Copper cable, 4 pairs, category 6a, solid |
Materials: |
Conductive material: bare copper |
Electrical characteristics: | ||||||||||||
Frequency, MHz | Attenuation, dB/100m 20°C | PS NEXT Loss, dB | NEXT Loss, dB | RL, dB | PS ANEXT, dB | PS ELFEXT, dB | ||||||
Typical Value | Cat. 6A | Typical Value | Cat. 6A | Typical Value | Cat. 6A | Typical Value | Cat. 6A | Typical Value | Cat. 6A | Typical Value | Cat. 6A | |
1 | 3.0 | 3.1 | 95.0 | 72.3 | 98.0 | 75.3 | 22.0 | 20.0 | 70.0 | 67.0 | 85.0 | 65.0 |
4 | 5.6 | 5.8 | 95.0 | 63.3 | 98.0 | 66.3 | 25.0 | 23.0 | 70.0 | 67.0 | 73.0 | 53.0 |
10 | 8.7 | 9.0 | 95.0 | 57.3 | 98.0 | 60.3 | 28.0 | 25.0 | 70.0 | 67.0 | 65.0 | 45.0 |
20 | 12.4 | 12.8 | 90.0 | 52.8 | 93.0 | 55.8 | 28.0 | 25.0 | 70.0 | 67.0 | 59.0 | 39.0 |
30 | 15.3 | 15.8 | 85.0 | 50.1 | 88.0 | 53.1 | 27.0 | 23.8 | 70.0 | 67.0 | 55.4 | 35.4 |
100 | 29.0 | 29.9 | 80.0 | 42.3 | 83.0 | 45.3 | 24.0 | 21.1 | 67.0 | 62.5 | 45.0 | 25.0 |
150 | 36.2 | 37.4 | 78.0 | 39.7 | 81.0 | 42.7 | 22.0 | 18.8 | 66.0 | 59.8 | 41.5 | 21.5 |
200 | 42.5 | 43.8 | 78.0 | 37.8 | 81.0 | 40.8 | 21.0 | 18.0 | 65.0 | 58.0 | 49.0 | 19.0 |
250 | 48.2 | 49.7 | 75.0 | 36.3 | 78.0 | 39.3 | 20.0 | 17.3 | 63.0 | 56.5 | 37.0 | 17.0 |
300 | 53.4 | 55.1 | 75.0 | 35.1 | 78.0 | 38.1 | 19.0 | 17.3 | 62.0 | 55.3 | 35.5 | 15.5 |
400 | 63.1 | 65.1 | 70.0 | 33.3 | 73.0 | 36.3 | 19.0 | 17.3 | 61.0 | 53.4 | 33.0 | 13.0 |
500 | 71.9 | 74.0 | 70.0 | 31.8 | 73.0 | 34.8 | 19.0 | 17.3 | 59.0 | 52.0 | 31.0 | 11.0 |
Frequency | 1 - 500 MHz |
Impedance | 100 Ω |
Direct current conductor resistance | 97 Ω/km |
Max Resistance Unbalance | 2 % |
Capacitance | 1,2 pF/m |
Propagation velocity | 78 % |
Dielectric breakdown strength | 700 V/1 min |
Min. insulation resistance | 5 G•km |
Tension force | 100 N |
Minimum bend radius | 45 mm |
Operating temperature | -30°C - +65°C |
